Next-Gen Home Mobility

Elevate Your Living.
Powered By Air.

Premium panoramic vacuum elevators designed for modern homes. No pre-construction pit, hoistway, or machine room required. Installed seamlessly in days.

Please enter your full name.
Please enter a valid email address.
Please enter your phone number.
Please specify your location.

Engineered to Global Compliance Standards

ASME A17.7 Safety Standard Compliance
CE Certified European Safety Standards
Liftinstituut Premium Quality Testing
Eco-Friendly Green Building Approved

A Work of Art, Powered by Air

What is an air-driven vacuum elevator? It is a residential lift that uses atmospheric pressure to ascend and descend without the need for a pit, shaft, or machine room. By generating a vacuum above the cabin with advanced turbines, the lift glides upward smoothly. During descent, air slowly re-enters the cylinder, allowing the lift to descend gently using gravity alone.

Eco-Friendly System

Uses minimal electricity on ascent and absolutely zero power during descent. No oils, grease, or hazardous chemicals required.

Self-Supporting Cylinders

Our elevators rest on the existing ground floor. No load-bearing walls, concrete shafts, or structural reinforcing needed. Shift the lift to a new location if you move home.

360° Panoramic Views

Designed with high-strength curved polycarbonate panels and a premium aluminum frame. Enjoy unobstructed sightlines throughout your home.

AI & Voice Assistant Ready

Integrated voice-command interfaces allow passengers to control the cabin destinations seamlessly with simple verbal requests.

Designed for Every Residence

Choose from our three standard models, each built to accommodate different spatial footprints and transit needs.

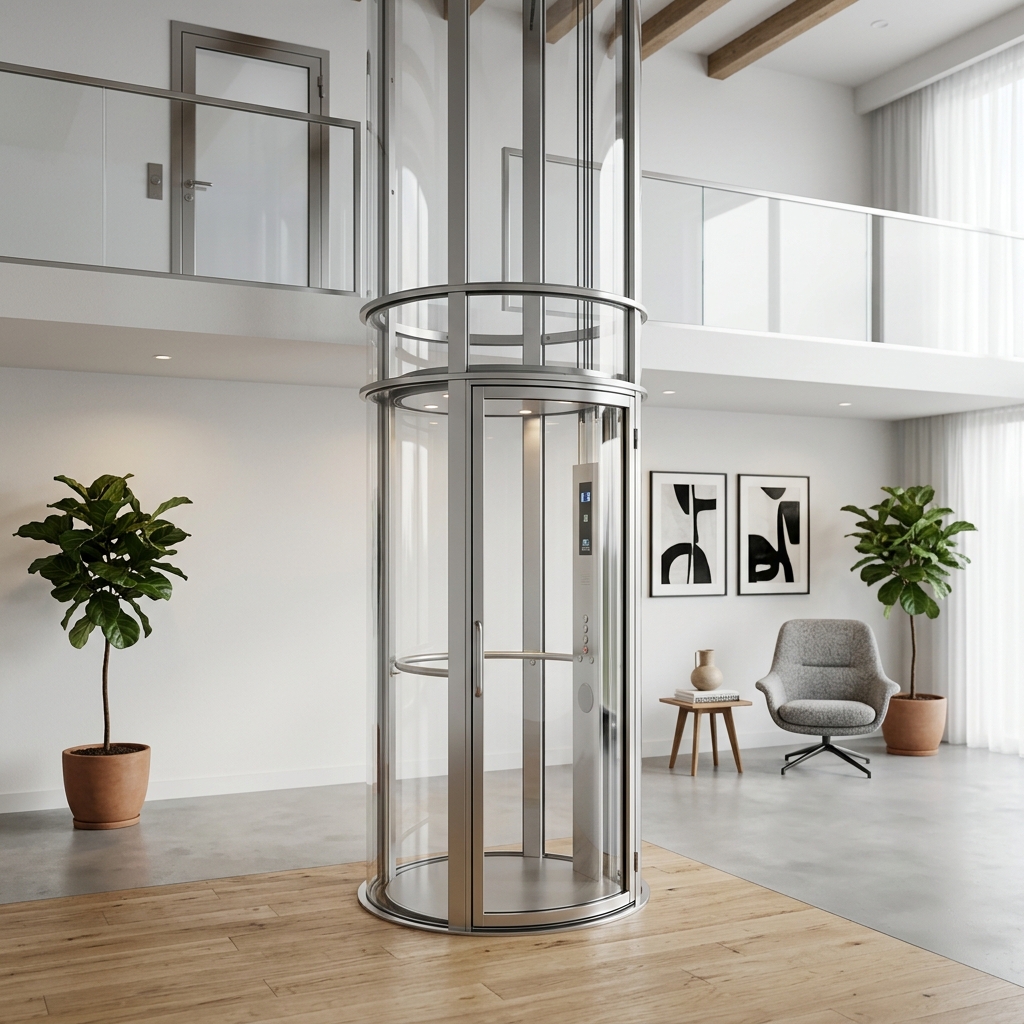

PVE30 Compact Single Passenger Vacuum Elevator

PVE30

Ultra Compact

Single Passenger Lift

The smallest home elevator in the world. With a tiny 750mm (30 inch) outer diameter, it fits into spaces no other lift can access.

  • Outer Diameter: 750 mm (30 inches)
  • Capacity: 1 Passenger (Up to 159 kg)
  • Stops: Up to 5 stops (50 ft / 15m rise)
  • Pit Required: 0 mm
Configure PVE30

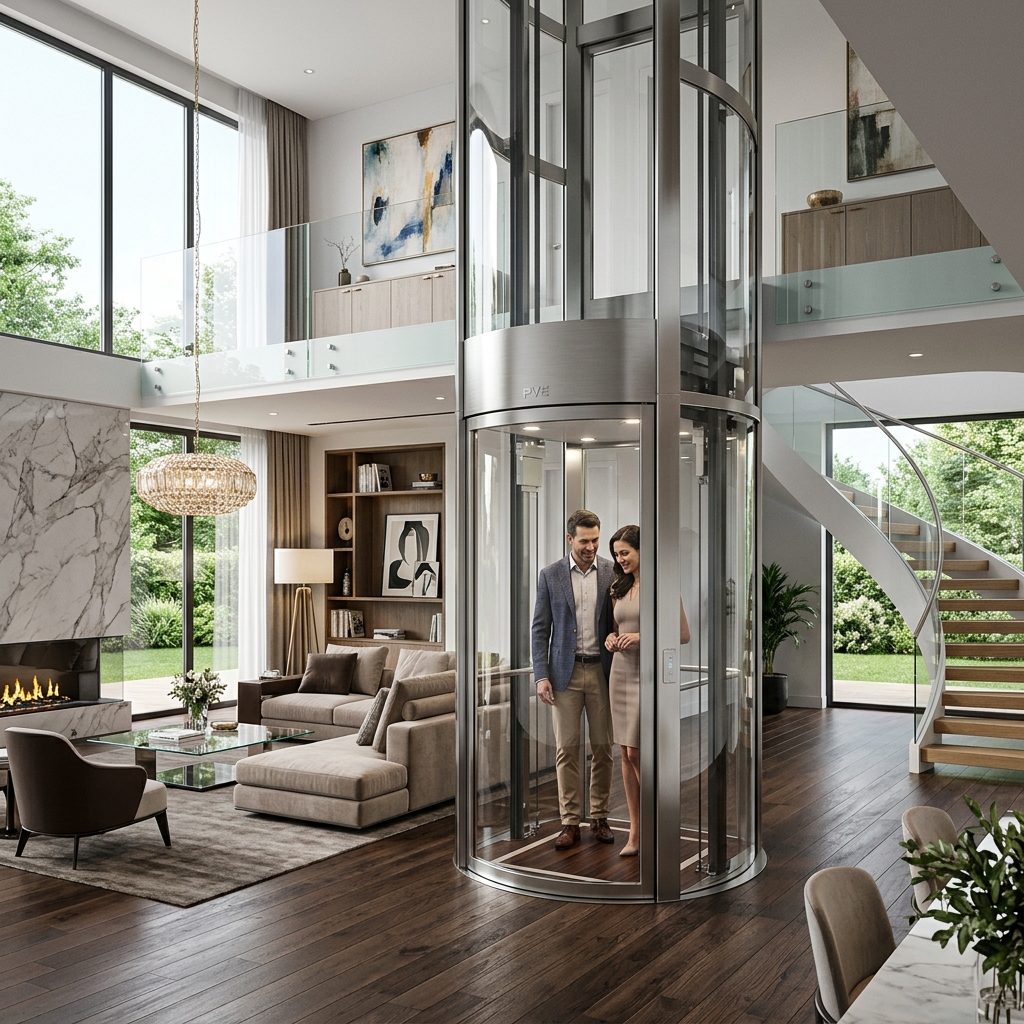

PVE37 Two Passenger Vacuum Elevator

PVE37

Most Popular

Two Passenger Lift

A perfectly balanced lift size. Comfortably handles two passengers while occupying less than 1 square meter of floor space.

  • Outer Diameter: 930 mm (37 inches)
  • Capacity: 2 Passengers (Up to 205 kg)
  • Stops: Up to 5 stops (50 ft / 15m rise)
  • Pit Required: 0 mm
Configure PVE37
PVE52 Three Passenger Wheelchair Accessible Vacuum Elevator

PVE52

Wheelchair Ready

Three Passenger / Wheelchair Accessible

Our ultimate spacious cabin design. Specifically sized to easily accommodate a standard passenger wheelchair with an attendant.

  • Outer Diameter: 1316 mm (52 inches)
  • Capacity: 3 Passengers / Wheelchair (Up to 238 kg)
  • Stops: Up to 5 stops (50 ft / 15m rise)
  • Pit Required: 0 mm
Configure PVE52
Engineered Safety First

The Safest Elevators
Ever Built.

Pneumatic vacuum lifts are inherently safer than standard cable or hydraulic traction lifts. Built on failure-proof principles, safety is woven into the physics of the design.

Gravity-Driven Auto Descent

If a power failure occurs, the air slowly leaks out of the top cylinder chamber, allowing the cabin to gently glide to the ground floor via gravity.

Mechanical Safety Lock Pins

Heavy-duty steel anchors lock the cabin automatically at each floor landing. If air pressure is completely compromised, safety brakes instantly trigger.

Eco-Lubricated Design

No hydraulic oils, toxic lubricants, or highly pressurized gases. Safer for both your family members and the home environment.

28,000+ Successful Installations
105+ Countries Globally
23+ Years of Engineering Excellence

Configure Your Custom Lift

Select your preferences below to receive a custom design rendering and cost proposal.

1. Lift Model
2. Floor Stops
3. Contact Details

Step 1: Choose Your Lift Model

PVE30

Single Passenger (750mm Ø)

PVE37

Two Passenger (930mm Ø)

PVE52

Three Passenger / Wheelchair (1316mm Ø)

Step 2: How many floor stops does your house require?

2 Stops (G + 1)
3 Stops (G + 2)
4 Stops (G + 3)
5 Stops (G + 4)

Step 3: Enter details to submit quote request

Please enter your full name.
Please enter a valid email address.
Please enter your phone number.
Please specify your location.

Configuration Submitted!

Thank you for customizing your PVE Vacuum Elevator. Our design specialist will prepare a detailed engineering layout drawing and cost estimate.

Your Configuration Summary:

  • Model Selected: PVE37
  • Number of Stops: 3 Stops
  • Name: John Doe
  • Location: Mumbai

Frequently Asked Questions

Everything you need to know about vacuum home elevators — from installation and safety to maintenance and pricing.

A vacuum elevator is an air-driven home lift that uses changes in atmospheric pressure to move. Turbines at the top of the cylinder reduce air pressure above the cabin, causing it to rise smoothly. To descend, air is slowly released back into the chamber and the cabin glides down gently using gravity — consuming zero electricity on the way down. Unlike traditional lifts, it requires no cables, pulleys, pistons, or hydraulic oil.

No. PVE vacuum elevators require absolutely no pit, hoistway, shaft, or machine room. The self-supporting polycarbonate cylinder sits directly on your existing ground floor. This makes them ideal for retrofitting into existing homes, villas, and duplexes without any major civil construction work — whether you are in a Delhi NCR independent house or a villa in Gurugram.

Yes, vacuum elevators are among the safest residential lifts available globally. PVE elevators are ASME A17.7 certified, CE marked, and tested by Liftinstituut. In case of a power failure, the cabin automatically descends to the ground floor using gravity. Mechanical safety lock pins engage at every floor landing, and no hydraulic oils or pressurized gases are used — making them inherently fail-safe.

PVE vacuum elevators can be fully installed in just 2 to 3 days. Since no pit, shaft, or machine room needs to be constructed, the installation process is minimally invasive. There is almost no disruption to your daily life. This is significantly faster than traditional hydraulic or traction elevators which typically take 3-6 weeks to install.

Absolutely. PVE vacuum elevators are specifically designed for retrofit installation in existing homes. The smallest model (PVE30) has just a 750mm diameter and fits into a tight corner. No structural reinforcement, load-bearing walls, or concrete shafts are needed — making it perfect for existing villas, independent houses, and duplexes across India, including homes in Noida, Gurugram, and the wider NCR region.

PVE vacuum elevators have extremely low maintenance costs because they have no cables, pulleys, pistons, or hydraulic oil. The only scheduled maintenance item is a seal replacement every 4 to 5 years. Annual servicing is recommended but typically costs a fraction of what traditional elevator maintenance requires — saving you both time and money long-term.

The PVE52 model is specifically designed for wheelchair accessibility and elderly users. With a spacious 1316mm (52 inch) diameter cabin, it comfortably accommodates a standard wheelchair with an attendant. The automatic door, smooth ride, and emergency auto-descent to the ground floor make it the safest and most practical choice for senior citizens and persons with mobility challenges.

PVE vacuum elevators are extremely energy efficient, operating on a standard single-phase 220V domestic power supply. The turbine motor only consumes electricity during ascent (approximately 3.5 kW for the largest model). During descent, the elevator uses gravity alone — consuming zero electricity. This makes it one of the most eco-friendly home lift options available in India today.

Vacuum lifts use air pressure to move the cabin, while hydraulic lifts use pressurized oil and a piston. Key differences: Vacuum lifts need no pit, shaft, or machine room (hydraulic lifts need all three). Installation takes 2-3 days vs weeks. Vacuum lifts use no oil or grease, making them eco-friendly. They offer 360° panoramic glass views vs enclosed cabins. Maintenance is lower with no cables, pulleys, or oil changes required.

PVE elevators hold three major international safety certifications: ASME A17.7, CE Mark, and Liftinstituut. ASME A17.7 is the performance-based safety code from the American Society of Mechanical Engineers. CE Mark certifies European health and safety conformity. Liftinstituut is an independent Dutch elevator testing authority. With 28,000+ installations across 105+ countries and 23+ years of operation, PVE has a proven global safety track record.
